Containerised Boiler Plant

Containerised Boilerplant Installations Manufacture, Delivery and Installation

Download the Data Sheet

Packaged Boiler Plant Datasheet

Containerised boiler plants have traditionally been hired when an in-house boiler is out of action, or during routine maintenance, repairs, re-locations or upgrades.

While many facilities managers still consider containerised boiler plant a temporary solution, more and more companies are choosing containers as a viable option for a long-term boiler plant solution. There are some obvious benefits to this approach for your Steam, hot water and biomass boiler plant installation:

  • Complete units are manufactured off-site, reducing disruption to everyday operations.
  • Containers can be easily located, with only pipework installation to be carried out on-site
  • Where space is at a premium, containers can be located alongside production units.
  • Container plants have greater resale potential.

Our Manufacturing Process

SPECIFICATION: We survey the proposed site to wholly understand the specific steam and plant requirements, before specifying a steam or hot water boiler from leading manufacturers to comply with MCP and EU Directives.

graphic-1
graphic-2
graphic-3

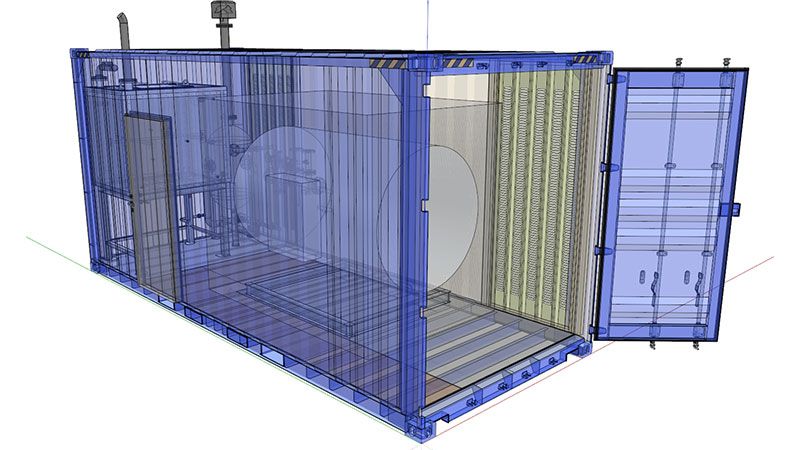

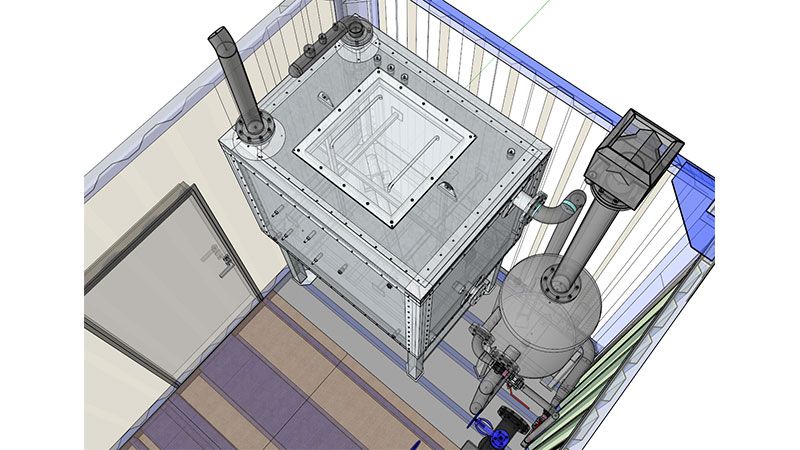

DESIGN: The internal layout and plant configuration of the container is modelled using CAD and 3-D software. Optimising the boiler house for ease of access and management is an essential process as a poorly planned installation can affect the efficiency of routine maintenance and day-to-day operations.

assemby1
assemby3
assemby2

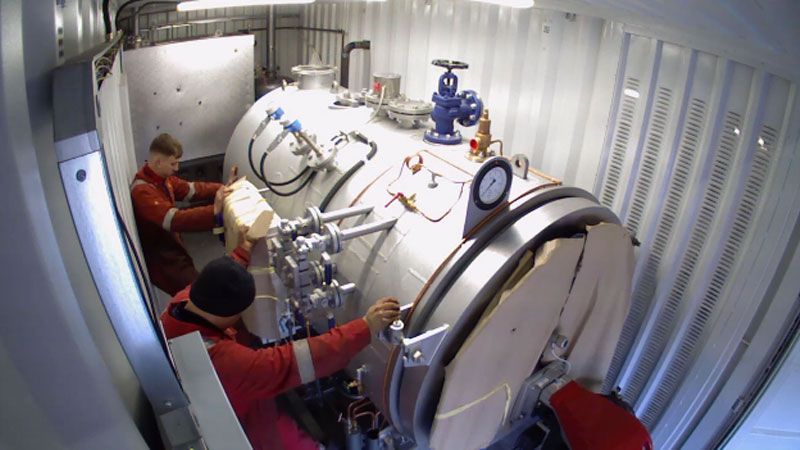

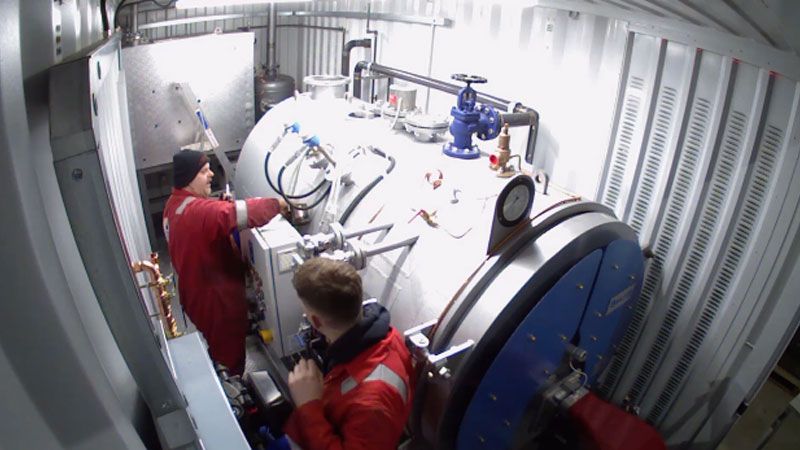

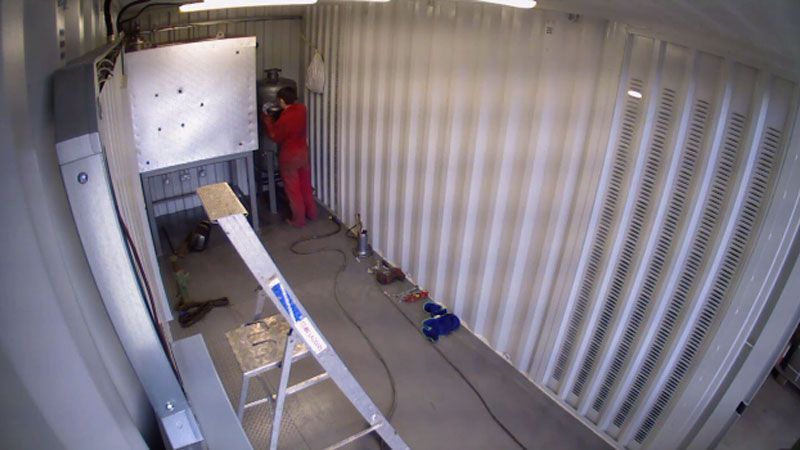

ASSEMBLY: The container is first adapted to suit the project, often involving the installation of a side door access, vented panels and a reinforced floor. The electrical distribution panel is then installed to allow for LED lighting and electrical connections. The boiler, ancillary equipment and pipework is then installed. Initial commissioning takes place at our works to identify any faults or operating issues prior to on-site installation.

installation3
installation1
installation2

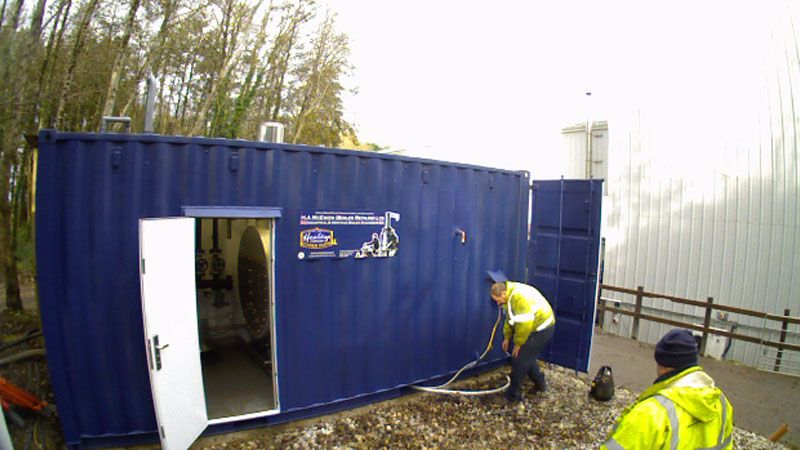

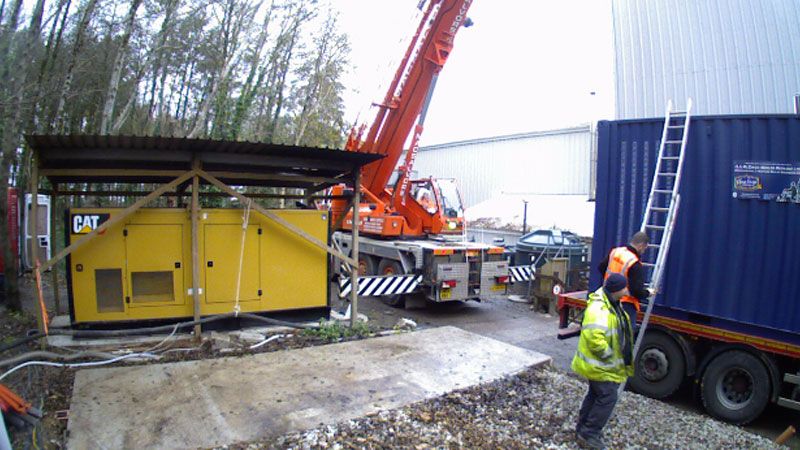

ON-SITE INSTALLATION: We complete on-site installations quickly and with minimum disruption. In most cases we pre-prepare all connecting pipework to again reduce time required on site. The new installation is then thoroughly tested and commissioned, with all relevant paperwork supplied.

Typical Containerised Boiler Plant Components

  • Steam or hot water boiler
  • Hotwell feed water tank
  • Steam distribution header
  • Blowdown receiver or blowdown recovery system
  • Insulated pipe installation
  • Electrical installation
  • Interior container lighting
  • Additional side door entry
  • Reinforced steel flooring
  • Exterior paint finish (corporate colours)

Optional Components that can be included in the installation

  • BCS Boiler control system
  • steam to water heat exchangers
  • Waste heat boiler
  • CHP
  • Metering

Get in Touch

When it comes to service, quality and safety, our record speaks for itself. We are competitively priced without any compromise on quality. To find out how we could help, please contact us:

By Phone
01535 634674

Contact Form



Containerised Steam Boilers Standard Specifications

Containerised boiler plants can be supplied in a wide range of configurations, though the size of the container does impose restrictions on the size of the boiler. Below is the typical range of the installation.

Output Range 200 – 1500 kg/hr
 Pressure Range  6 – 10 bar
 Fuel Types  Gas (Natural, LPG, Boigas)
 Standards  MCPD, CE, EU, BS



Standard Container Sizes

We provide advice on the best size and configuration of the container. Below are standard container configurations. We can also build bespoke packaged boiler plant housing to suit the larger boilers.

  20ft Standard Container 20ft High Cube Container
External Dimensions Length: 20ft (6.06m)
Height: 8ft 6ins (2.59m)
Width: 8ft (2.44m)
Length: 20ft (6.06m)
Height: 9ft 6ins (2.89m)
Width: 8ft (2.44m)
Internal Dimensions Length: 19ft 3ins (5.87m)
Height: 7ft 9ins (2.35m))
Width: 7ft 7ins (2.33m)
Length: 19ft 3ins (5.87m)
Height: 8ft 9ins (2.65m)
Width: 7ft 7ins (2.33m)
Floor Area 150sqft (13.93m²) 150sqft (13.93m²)
Cubic Capacity 1160 cu ft (32.85m³) 1310cu ft (37.09m³)
Weight 2.4 tons (2.4 tonnes) 2.4 tons (2.4 tonnes)



  40ft Standard Container 40ft High Cube Container
External Dimensions Length: 40ft (12.19m)
Height: 8ft 6ins (2.59m)
Width: 8ft (2.44m)
Length: 40ft (12.19m)
Height: 9ft 6ins (2.89m)
Width: 8ft (2.44m)
Internal Dimensions Length: 39ft 4ins (12.00m)
Height: 7ft 9ins (2.35m)
Width: 7ft 7ins (2.33m)
Length: 19ft 3ins (5.87m)
Height: 8ft 9ins (2.65m)
Width: 7ft 7ins (2.33m)
Floor Area 305sqft (28.33m²) 305sqft (28.33m²)
Cubic Capacity 2360 cu ft (66.83m³) 2660cu ft (75.32m3)
Weight 4 tons (4.06 tonnes) 4 tons (4.06 tonnes)
